Dear fellows!

I have observed that some senior engineers have not been using stiffness modifiers in their designs. What is the concept behind  i am not clear . As we design RC for strength, section is cracked and to cater for this cracked section, property modifiers are used as per

 ACI 318-11  10.10.4 (stiffness requirement)

 ACI 318-11  8.7 (stiffness requirement)

UBC97 1630.1.2 (modelling requirement)

 so why whole section is considered in design. is there any other logic which i couldn't understand.



Regards

Share this post


Link to post
Share on other sites

The RC members in a physical structure crack well below the ultimate load.Therefore using full MOI of the member in idealized model is not justified.

Though the use of full MOI will not affect the total value of bending (positive plus negative), the distribution b/w the members may change considerably.

It is not the absolute MOI that matter,rather it is the relative stiffness of members that must be considered.

In short, these modifiers (reductions in MOI) are used for the calculation of deflections i.e Serviceability checks...

Share this post


Link to post
Share on other sites
1 hour ago, EngrJunaid said:

Though the use of full MOI will not affect the total value of bending (positive plus negative), the distribution b/w the members may change considerably.

How is that possible?

Share this post


Link to post
Share on other sites

good comparison!! it means designing with modifiers will give more practical results and better moment redistribution. what is the effect of modifiers on lateral deflection?

Share this post


Link to post
Share on other sites

i found another related discussion

another document i found a somewhat good summary for modifiers

https://www.academia.edu/13211701/Stiffness_Modifier

Stiffness_Modifier.pdf

Share this post


Link to post
Share on other sites



On ‎1‎/‎14‎/‎2017 at 0:35 PM, EngrJunaid said:

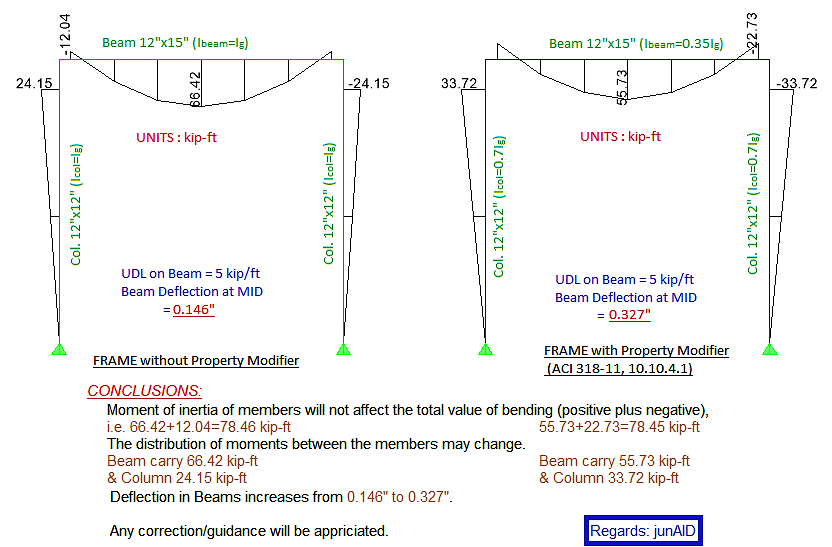

See the Attached self explanatory picture.
